Gama estándar: Métrica M1.0 > M52, pulgadas Oun > 2"
-
E-CATALOG

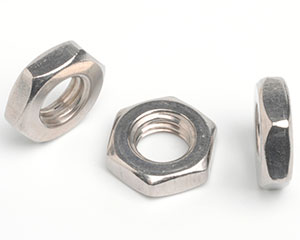

M36 CONTRATUERCA HEXAGONAL DIN 936 A2-35
£1409.00 (exc VAT) per 100
Número de pieza A93636
£1409.00 (exc VAT) per 100
| Cantidad y precio | Precio por 100 |
|---|---|
| 10 + | £1409.00 |
| 20 + | £1338.55 |
| 40 + | £1271.62 |
| 100 + | £1208.22 |
| 200 + | £1133.54 |
Información adicional
| Diameter (d) | Pitch | s | m |
|---|---|---|---|
| M8 | 1.25 | 13.00-12.73 | 5.00-4.70 |
| M10 | 1.50 | 17.00-16.73 | 6.00-5.70 |
| M12 | 1.75 | 19.00-18.67 | 7.00-6.64 |
| M14 | 2.00 | 22.00-21.87 | 8.00-7.42 |
| M16 | 2.00 | 24.00-23.67 | 8.00-7.42 |
| M18 | 2.50 | 27.00-26.16 | 9.00-8.42 |
| M20 | 2.50 | 30.00-29.16 | 9.00-8.10 |
| M22 | 2.50 | 32.00-31.00 | 10.00-9.10 |
| M24 | 3.00 | 36.00-35.00 | 10.00-9.10 |
| M27 | 3.00 | 41.00-40.00 | 12.00-10.90 |
| M30 | 3.50 | 46.00-45.00 | 12.00-10.90 |
| M33 | 3.50 | 50.00-49.00 | 14.00-12.90 |
| M36 | 4.00 | 55.00-53.80 | 14.00-12.90 |
| M39 | 4.00 | 60.00-58.80 | 16.00-14.90 |
| M42 | 4.50 | 65.00-63.10 | 16.00-14.90 |
