Gama estándar: Métrica M1.0 > M52, pulgadas Oun > 2"
-
E-CATALOG

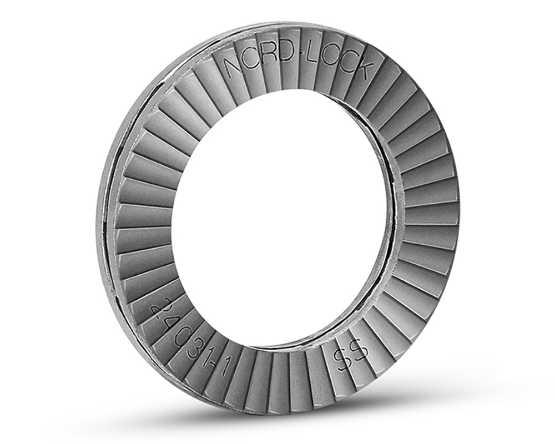

M18 X 29,0 X 3,2 ARANDELAS NORD-LOCK NL18SS - PAR PEGADO A4 (316L)
£424.51 (exc VAT) per 100
Número de pieza ANL18SS
£424.51 (exc VAT) per 100
| Cantidad y precio | Precio por 100 |
|---|---|
| 100 + | £424.51 |
| 200 + | £403.28 |
| 400 + | £383.12 |
| 1000 + | £364.02 |
| 2000 + | £341.52 |
Información adicional
| Diameter (d) | UN | d1 | d2 | h | s |
|---|---|---|---|---|---|
| M3 | #5 | 3.4 | 7.0 | 2.2 | 1.1 |
| M3.5 | #6 | 3.9 | 7.6 | 2.2 | 1.1 |
| M3.5 | #6 | 3.9 | 9.0 | 2.2 | 1.1 |
| M4 | #8 | 4.4 | 7.6 | 2.2 | 1.1 |
| M4 | #8 | 4.4 | 9.0 | 2.2 | 1.1 |
| M5 | #10 | 5.4 | 9.0 | 2.2 | 1.1 |
| M5 | #10 | 5.4 | 10.8 | 2.2 | 1.1 |
| M6 | * | 6.5 | 10.8 | 2.2 | * |
| M6 | * | 6.5 | 13.5 | 2.0 | * |
| M8 | 5/16" | 8.7 | 13.5 | 2.0 | * |
| M8 | 5/16" | 8.7 | 16.6 | 2.0 | * |
| M10 | * | 10.7 | 16.6 | 2.0 | * |
| M10 | * | 10.7 | 21.00 | 2.0 | * |
| M11 | 7/16" | 11.4 | 18.5 | 2.2 | * |
| M12 | * | 13.0 | 19.50 | 2.0 | * |
| M12 | * | 13 | 25.4 | 3.0 | * |
| M14 | 9/16" | 15.2 | 23.0 | 3.0 | * |
| M14 | 9/16" | 15.2 | 30.7 | 3.2 | * |
| M16 | 5/8" | 17.0 | 25.4 | 3.0 | * |
| M16 | 5/8" | 17.0 | 30.7 | 3.2 | * |
| M18 | * | 19.5 | 29.0 | 3.2 | * |
| M18 | * | 19.5 | 34.5 | 3.2 | * |
| M20 | * | 21.4 | 30.7 | 3.0 | * |
| M20 | * | 21.4 | 39.0 | 3.2 | * |
| M22 | 7/8" | 23.4 | 34.5 | 3.2 | * |
| M22 | 7/8" | 23.4 | 42.0 | 3.2 | * |
| M24 | * | 25.3 | 39.0 | 3.2 | * |
| M24 | * | 25.3 | 48.5 | 3.2 | * |
| M27 | * | 28.4 | 42.0 | 6.8 | * |
| M27 | * | 28.4 | 48.5 | 6.8 | * |
| M30 | 1.1/8" | 31.4 | 47.0 | 6.8 | * |
| M30 | 1.1/8" | 31.4 | 58.5 | 6.8 | * |
| M33 | 1.1/4" | 34.4 | 48.5 | 6.8 | * |
| M36 | 1.3/8" | 37.4 | 55.0 | 6.8 | * |
| M39 | 1.1/2" | 40.4 | 58.5 | 6.8 | * |
| M42 | * | 43.2 | 63.0 | 6.8 | * |
| M45 | 1.3/4" | 46.2 | 70.0 | 6.8 | * |
| M48 | * | 49.6 | 75.0 | 6.8 | * |
| M52 | 2" | 53.6 | 80.0 | 9.0 | * |
| M56 | 2.1/4" | 59.1 | 85.0 | 9.0 | * |
| M60 | 2.1/4" | 63.1 | 90.0 | 9.0 | * |
| M64 | 2.1/2" | 67.1 | 95.0 | 9.0 | * |
| M68 | * | 71.1 | 100.0 | 9.0 | * |
| M72 | * | 75.1 | 105.0 | 9.0 | * |
| M76 | 3" | 79.1 | 110.0 | 9.0 | * |
| M80 | 3.1/8" | 83.1 | 115.0 | 9.0 | * |
