Gama estándar: Métrica M1.0 > M52, pulgadas Oun > 2"
-
E-CATALOG

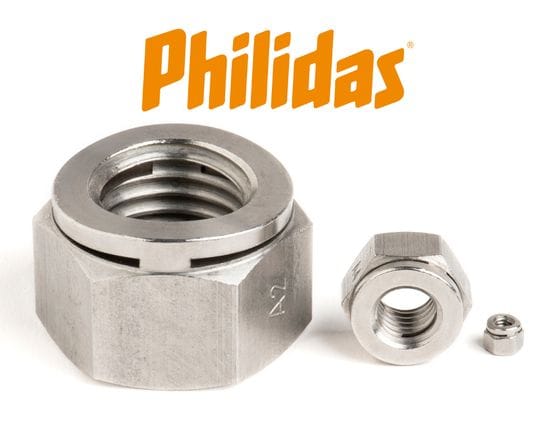

M24 TUERCAS INDUSTRIAL PHILIDAS, METÁLICA AUTOBLOCANTE (24MCI/4S00) A4-80
£4369.53 (exc VAT) per 100
Número de pieza APHIL24A4
£4369.53 (exc VAT) per 100
| Cantidad y precio | Precio por 100 |
|---|---|
| 10 + | £4369.53 |
| 20 + | £4151.05 |
| 40 + | £3943.50 |
| 100 + | £3746.87 |
| 200 + | £3515.29 |
Información adicional
| Diameter (d) | Pitch | s | e (min) | m (nom) | b (nom) | Applied Torque (Nm) | Proof Load (N) | Clamp Load (N) |
|---|---|---|---|---|---|---|---|---|
| M3 | 0.50 | 5.50-5.32 | 6.01 | 2.5 | 4.5 | * | * | * |
| M4 | 0.70 | 7.00-6.78 | 7.66 | 3.3 | 5.4 | 3.20 | * | * |
| M5 | 0.80 | 8.00-7.78 | 8.79 | 4.3 | 6.5 | 5.70 | 12140 | 6584 |
| M6 | 1.00 | 10.00-9.78 | 11.05 | 5.0 | 7.5 | 9.60 | 17200 | 9280 |
| M8 | 1.25 | 13.00-12.73 | 14.38 | 5.7 | 8.5 | 23.50 | 31800 | 16960 |
| M10 | 1.50 | 17.00-16.73 | 18.90 | 8.0 | 11 | 46.80 | 50500 | 26960 |
| M12 | 1.75 | 19.00-18.67 | 21.10 | 9.5 | 13 | 88 | 74200 | 39120 |
| M16 | 2.00 | 24.00-23.67 | 26.75 | 12.8 | 17 | 206 | 138200 | 72800 |
| M20 | 2.50 | 30.00-29.16 | 32.95 | 17.5 | 22 | 402 | 225400 | 117600 |
| M24 | 3.00 | 36.00-35.00 | 39.55 | 19.5 | 25 | 720 | 324800 | 169600 |
