Gama estándar: Métrica M1.0 > M52, pulgadas Oun > 2"
-
E-CATALOG

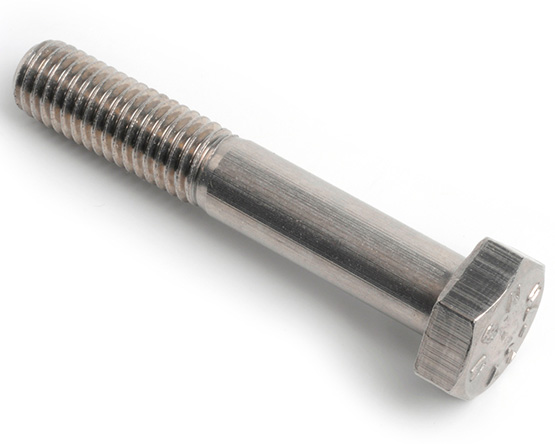

M10 X 190 TORNILLO DE CABEZA HEXAGONAL, PARCIAL ROSCADO ISO 4014 A4-80
£292.91 (exc VAT) per 100
Número de pieza A401410190A480
£292.91 (exc VAT) per 100
| Cantidad y precio | Precio por 100 |
|---|---|
| 25 + | £292.91 |
| 50 + | £278.26 |
| 100 + | £264.35 |
| 250 + | £251.17 |
| 500 + | £235.65 |
Información adicional
| Diameter (d) | Pitch | s | k | b | b (L >125mm) | b (L >200mm) |
|---|---|---|---|---|---|---|
| M5 | 0.80 | 8.00-7.64 | 3.26-2.85 | 16 | 22 | 35 |
| M6 | 1.00 | 10.00-9.64 | 4.24-3.76 | 18 | 24 | 37 |
| M8 | 1.25 | 13.00-12.57 | 5.54-5.06 | 22 | 28 | 41 |
| M10 | 1.50 | 16.00-15.57 | 6.69-6.11 | 26 | 32 | 45 |
| M12 | 1.75 | 18.00-17.57 | 7.79-7.21 | 30 | 36 | 49 |
| M14 | 2.00 | 21.00-20.16 | 9.09-8.51 | 34 | 40 | 53 |
| M16 | 2.00 | 24.00-23.16 | 10.29-9.71 | 38 | 44 | 57 |
| M18 | 2.50 | 27.00-26.16 | 11.85-11.15 | 42 | 48 | 61 |
| M20 | 2.50 | 30.00-29.16 | 12.85-12.15 | 46 | 52 | 65 |
| M22 | 2.50 | 34.00-33.00 | 14.35-13.65 | 50 | 56 | 69 |
| M24 | 3.00 | 36.00-35.00 | 15.35-14.65 | 54 | 60 | 73 |
